Ceiling Baffles

Give reverberation the vertical takedown it deserves. High-performance acoustic ceiling baffles suspend vertically to masterfully absorb sound in large, open areas or spaces with high ceilings. These elements dramatically improve speech intelligibility and are available in diverse linear or geometric forms using materials like PET felt or aluminum, adding dynamic visual rhythm while optimizing the soundscape.

Ceiling Panels

GRAFFLE

PET Felt Ceiling System

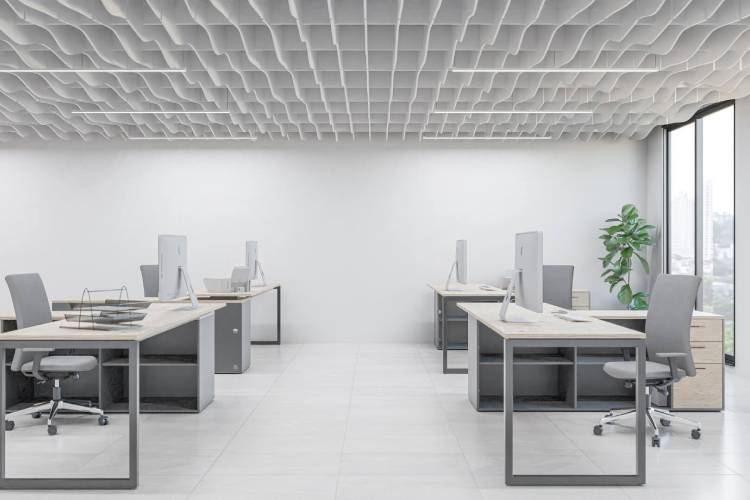

BLAFFE

PET Felt Ceiling System

BAFFLE

Silk Metal

SQUELL

Silk Metal

TRELL

Silk Metal

BEAM

PET Felt Ceiling System

BLADE

PET Felt Acoustic Baffle

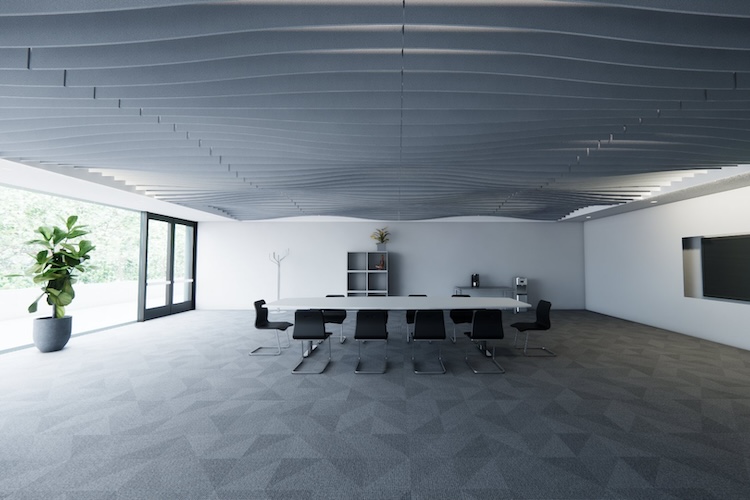

TOPO

PET Felt Baffle System

Choosing the Right Ceiling Baffle System

Acoustic Target

Acoustic baffles are designed to interrupt lateral sound energy that travels across large, open spaces. Unlike horizontal ceiling clouds, which primarily address floor-to-ceiling reflections, vertical baffles act as a brake for noise moving throughout a room by exposing maximum surface area to the sound field. This makes them an efficient solution for reducing reverberation in high-ceiling environments where sound tends to accumulate and carry across open volumes. Material LogIQ baffle systems can be tuned through depth, spacing, suspension height, and material selection to meet RT60 targets, improve speech intelligibility, and control overall noise buildup—all while preserving the visual openness and exposed structure of the ceiling.

Ceiling Volume, Height & Coverage Strategy

Baffles are particularly well suited for tall or open ceilings where sound energy accumulates above the occupied zone. Their vertical orientation allows sound absorption to occur throughout the air volume, not just at a single plane. Deeper baffles and tighter spacing increase absorption effectiveness, while wider spacing supports more open aesthetics. Many projects deploy baffles selectively—over circulation paths, work zones, or gathering areas—to balance acoustic performance, visual openness, and budget.

Design Integration

Baffles play a prominent visual role and are often used as architectural elements. Orientation, rhythm, color, and depth can reinforce wayfinding, zoning, or brand expression while maintaining acoustic control. Material LogIQ baffle systems are available in PET felt, and aluminum finishes, allowing designers to align acoustic function with lighting layouts, exposed ductwork, and structural grids.

Environment & Application Considerations

Baffle systems are commonly specified for corporate offices, education spaces, transit areas, atriums, retail environments, and creative studios—particularly where exposed ceilings are desired. In public or institutional settings, baffles must meet fire performance, durability, and air movement requirements. Ceiling-specific engineering is critical; not all wall materials or mounting approaches are suitable for suspended vertical applications.

Sustainability & Material Selection

Because baffles occupy significant air volume and surface area, material choices have a measurable impact on environmental performance. Material LogIQ offers baffle systems made with recycled content, low-VOC materials, and third-party certifications. PET felt baffles, in particular, support sustainability goals while delivering high acoustic absorption per square foot.

Suspension & Coordination

Baffle systems rely on engineered suspension methods, including cable systems, carrier rails, or custom frames. Layout must account for seismic requirements, load calculations, plenum access, and coordination with lighting, sprinklers, and mechanical systems. Material LogIQ provides technical guidance, shop drawings, and CAD/Revit assets to ensure baffle systems integrate cleanly and safely within the ceiling infrastructure.

Frequently Asked Questions

When should I use ceiling clouds versus acoustic baffles?

Ceiling clouds are horizontal panels or assemblies that create localized acoustic treatment at a defined elevation. They are most effective in spaces with moderate ceiling heights where sound absorption is needed directly above occupied areas such as conference rooms, classrooms, or collaboration zones. Acoustic baffles are vertically oriented elements that absorb sound on multiple faces. They are ideal for large, tall, or open ceilings—especially exposed structures—where sound energy builds up throughout the volume of the space. Baffles reduce reverberation more efficiently in high-volume environments by engaging sound at multiple heights without visually closing in the ceiling.

Acoustic performance depends on material type, baffle depth, spacing, and suspension height.

Baffles are highly efficient because they absorb sound on multiple faces and interact with sound energy throughout the room volume. PET felt baffles, for example, can deliver very high absorption per square foot when spaced and suspended correctly. Micro-perforated metal baffles can achieve strong mid-to-high frequency absorption, with enhanced performance when used with acoustic backing.

Material LogIQ offers ceiling-appropriate baffle systems in two engineered materials:
  • PET Felt (recycled)
  • Micro-perforated aluminum systems
Each material is engineered for suspended vertical installation and is available in a range of sizes, finishes, and performance levels. Not all wall panel constructions are suitable for baffles; material selection is guided by acoustic targets, durability, and code requirements.
Yes. All Material LogIQ baffle systems (both PET felt and aluminum) are Class A fire-rated per ASTM E84 and are designed for commercial and public environments.
Yes. Baffle systems are highly customizable and commonly specified in custom depths, lengths, spacing patterns, colors, and finishes. Customization allows baffles to function as architectural features while meeting acoustic and budget requirements.

Baffles are typically installed using suspension cables, carrier rails, or engineered framing systems. Key planning considerations include ceiling height, plenum access, seismic requirements, load calculations, and coordination with lighting, HVAC, and fire protection systems.

Unlike wall panels or ceiling-attached panels, baffles require ceiling-specific engineering to ensure safe suspension and long-term performance.

Yes, baffles must be coordinated carefully with lighting design, but they can be integrated successfully without compromising illumination. Because baffles are vertically oriented, they generally have less impact on light spread than solid ceiling planes, but spacing, depth, and orientation can influence shadowing and fixture performance.
Baffles are compatible with most HVAC systems when properly planned. Because they are suspended with open space between elements, they allow air to circulate through the ceiling volume rather than creating a continuous barrier.
No. Acoustic baffles are absorptive elements, not sound-isolating barriers. They reduce reverberation, echo, and overall sound buildup within a space, but they do not block sound transmission between rooms or prevent sound from traveling through walls, ceilings, or structural assemblies. Baffles are most effective when used to improve speech clarity and comfort within open or shared spaces, not to contain sound.

Maintenance varies by material:

  • PET felt baffles: Periodic dusting or gentle vacuuming
  • Metal baffles: Wipe with a soft cloth and mild detergent; avoid abrasive cleaners

Always follow product-specific maintenance guidelines included with the specification.

Yes. Sustainability is a key consideration in Material LogIQ baffle systems. PET felt baffles contain up to 60% post-consumer recycled content and are GREENGUARD Gold certified. Many baffle systems support low-VOC requirements and can contribute toward LEED and other green building documentation.

Lead times depend on material selection, customization level, finish, and project scale. To streamline recommendations, provide ceiling height, target areas, acoustic goals, finish preferences, budget range, and installation timeline when initiating a consultation.
Yes. Physical samples are available and recommended, particularly to evaluate color, texture, and light interaction. Specifications should reference the exact baffle system name, dimensions, material thickness, finish, acoustic performance data, and suspension method. Material LogIQ provides specification sheets, shop drawings, and CAD/Revit models to support accurate documentation.
